Monday, January 25, 2010

Make your own Cricut George cartridge for free!

Most Cricuts come with the George and Basic Shapes cartridge, unfortunately mine did not.  I have no idea why, maybe because I bought my Cricut in Canada?  I quickly found out that a lot of free patterns found online are created with the George cartridge, probably because most people have it.  Since you can’t buy George, other than on eBay for a ridiculous price (around $50 and up!), I decided to make my own.
It’s really quite simple, especially for a person who crafts. ;)
I used two pieces of cardboard from a potato chip box because it makes it thicker to fit into the slot.  One inch wide by about 2 inches long.  At a forum I belong to someone said you could also use an old credit card because it’s thicker, I haven’t tried that method but it sounds good.
I then cut three pieces of tinfoil.  It doesn't matter about the size of the piece that goes across the two strips, you're only using it to connect the strips together so everything touches.  You may have to double the two tinfoil strips (or even triple it) to make them slightly thicker so they can touch the pins in the Cricut, simply fold them in half, but do not put them on the backside of the cardboard.  One strip will cover pins 2 & 3 together, and the other strip will cover pin 5.  Make sure the tinfoil for pins 2 & 3 are a tad wider than the strip for pin 5.  You can see in the picture where I've marked the pins.

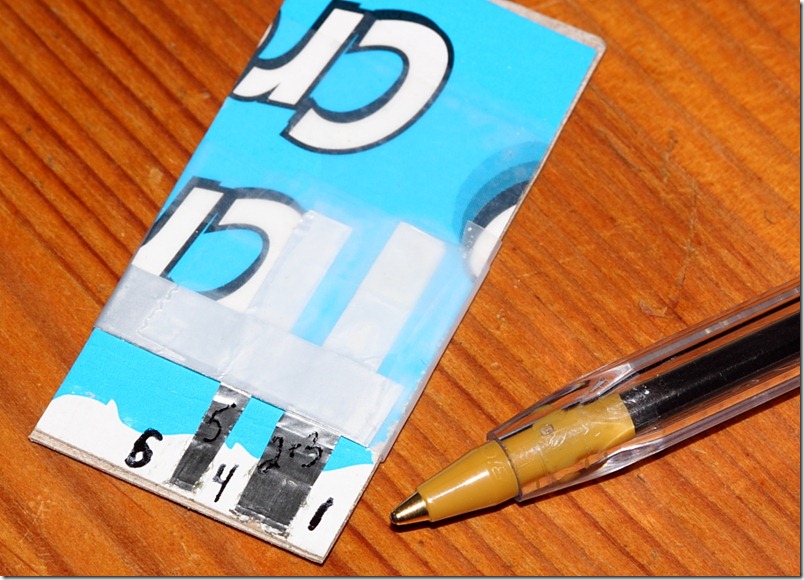

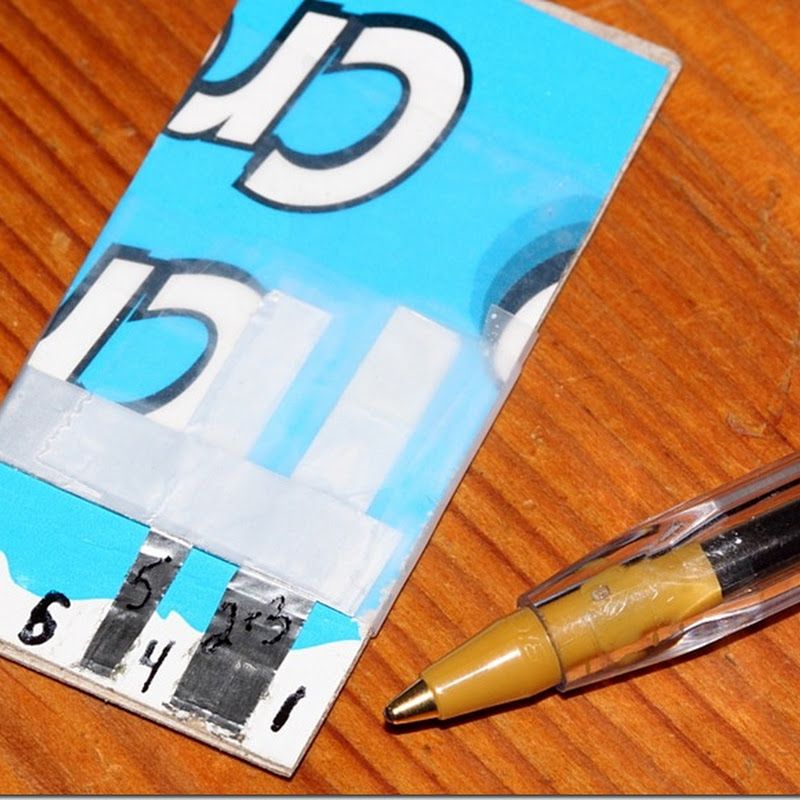

Tape the two pieces of cardboard together and then glue down the tinfoil.  Tape the top tinfoil that goes across the two strips so all three pieces of tinfoil connect.  In the picture my George has been used quite a bit but is still working great. :)
George 021
This is what your George cartridge looks like when it’s in the Cricut.  Make sure it lines up correctly and it has to be facing towards you.
George Cart 008

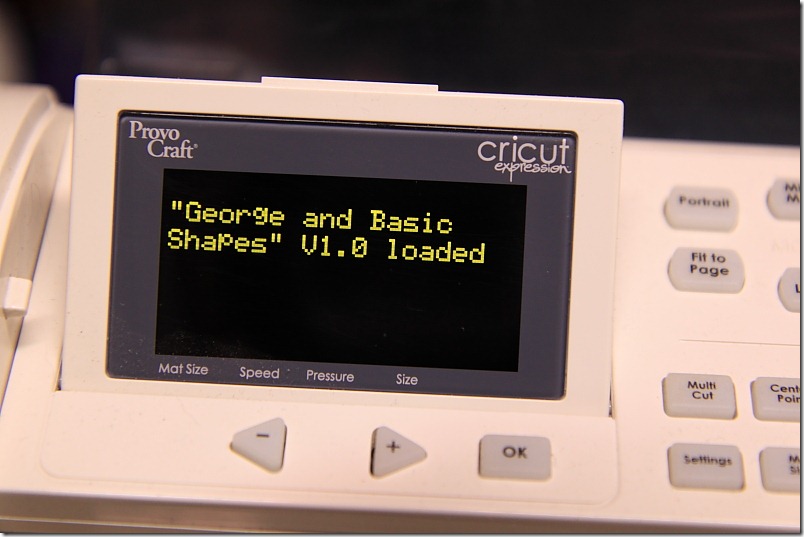

Here you can see on the screen that George is loaded.
George Cart 011
And here’s a close-up.
George Cart 009

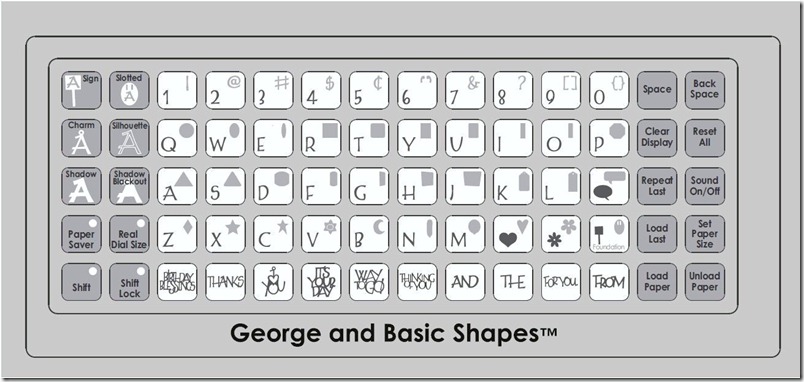

Print out of George.  If you click on the picture you will go to flickr.  Select “All sizes” and download the original size for a bigger image.  If you Google “George Cricut Handbook” you’ll come up with quite a few results.
George and Basic Shapes
If this worked for you please leave a comment and let others know it really works! :)
Disclaimer:  You do this at your own risk!  One person (out of hundreds) reported that her Cricut will only recognize the George cartridge, it’s possible that this problem could have happened even with the original George cartridge but I thought I’d let everyone know.
For more pictures please visit my Flickr site. http://www.flickr.com/photos/kansasa/
If you really don’t want to make your own, and would like a heavy duty one, James has left a comment that I thought I would share on this post.  Thank you James! :)
James has left a new comment:
My friend showed me your site and since my Wife received a Cricut Expression for Christmas (from me), and we didn't get that cartridge I thought that's a great idea!
I designed a very simple electronic board, to make it easier to use. Also should you ever have a case with a bad board inside it should fit perfectly in the case. I appreciate you sharing the idea with the world so I'm also sharing the electronic version without any charge for my time, although the service has a fee. The cost is $5.35 each with $11+ Shipping and Handling, actual shipping time was 3 weeks because they are made to order. I suggest several friends buying as a group to share the shipping and handling. I bought 1 for myself and 2 for friends for a total of $27. It doesn't have a label but this is a crafty audience who could do a better job themselves.
http://batchpcb.com/index.php/Products/27193
******************************************************************
